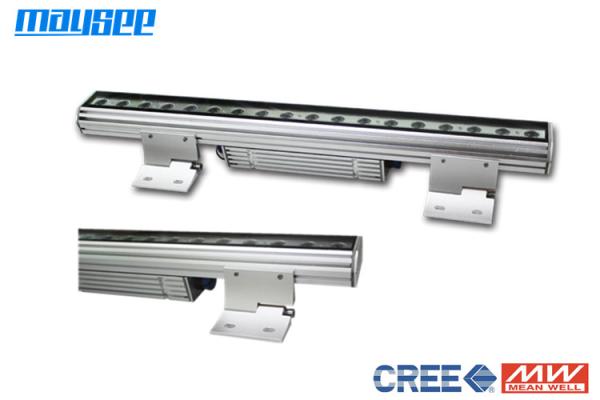

Outdoor RGBW(4-in-1) Aluminum LED Wall Washer Lights with waterproof and DMX control

Shenzhen Maysee Technology Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Outdoor RGBW(4-in-1) Aluminum LED Wall Washer Lights with waterproof and DMX control

  • 1
  • 2

Brand Name : Maysee

Model Number : MS-WW-RGB-C

Certification : CE/ROHS

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T or WU or Paypal

Supply Ability : 10000pcs per month

Delivery Time : 10-15 working days upon receipt of the deposit

Packaging Details : Carton box or wooden case

Material : Anodized aluminum

Light Color : RGBW(4-in-1)

LED Type : Cree

Control Mode : DMX

Input Voltage : 110VAC/220VAC

IP Rating : IP65

Rated Power : 6x4w

Warranty : 3-year

Power Supply : Meanwell

Lens Brand : LEDLink

Contact Now

Outdoor RGBW(4-in-1) Aluminum LED Wall Washer Lights with waterproof and DMX control

Specification

Model No.: MS-WW-RGB-C(6x4W)
Electric
Parameter
Max.Power 6x4W
LED Drive Current 4x350mA
Input Voltage AC220V/AC110V
Power Efficiency >90%
Environment
Parameter
Humidity 0~85%RH
Storage Temp. -40°~+80°
Operating Temp. -25℃~ +50℃(-13°F ~ +122°F)
Physical Parameter Dimension 323mm(1ft)x75mm(W)x75mm(H)
Weight 1.2kg
Material aluminum & tempered glass
Housing Color silver
IP Grade IP65
Optical
Parameter
LED Brand CREE MCE
LED Unit Power 4W
LED Quantity 6pcs
Light Source RGBW(4-in-1)
Lens Angle 25°/ 40°/ 60°/25°x45°
White Color Temperature Warm White(2700~4000K);
Pure White(4000~5000K);
Cool White(>5000K)
LED Wave Length Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm
Life Time 50,000hrs
Controller DMX512 / On-Off

Application
Architecture building, bridge, commercial area, museum, road, park, garden, etc.

Features
1. Aluminum housing

2. With 110V/220VAC high-power input
3. Up to 50,000hrs long life-span

4. Easy for cable connection and installation layout

5. Both RGB & mono-color are available
6. IP65

Advantages
1. Private tool with nice appearance design and feasible mechanical assembly
2. With thick enough anodized aluminum housing to go for better heat-dissipation
3. High-power led suitable for outdoor night visual effect

Description

MS-WW-RGB-C comes with separated led strip and power drive design, in the purpose of having the light work with 110VAC/220VAC directly.

With LEDLink lens, Cree led, Meanwell power supply and tempered glass to go for high performance and reliability.Maysee provides 3-year warranty and the best competitive technical solution accord with any special requirement from customers.

RGBW(4-in-1) multi-color with color-changing will mostly run via DMX512 system.

6x4w & 12x4w are the most popular model preferred by customers both the indoor and outdoor decorative wall washers, widely used for shopping mall, bridge, park and garden, etc.

Below just shows how to do the cable connection between DMX512 and led wall washer lights.

Outdoor RGBW(4-in-1) Aluminum LED Wall Washer Lights with waterproof and DMX control

Outdoor RGBW(4-in-1) Aluminum LED Wall Washer Lights with waterproof and DMX control

The big difference between Maysee's led wall washer light and others'. Then you'll see what we do and why us.

Outdoor RGBW(4-in-1) Aluminum LED Wall Washer Lights with waterproof and DMX control
