Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light

Brand Name : Maysee

Model Number : MS-WW-RGB-D

Certification : CE/ROHS/IP68

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T or WU or Paypal

Supply Ability : 10000pcs per month

Delivery Time : 10-15 working days upon receipt of the deposit

Packaging Details : Carton box or wooden case

Material : Anodized aluminum+316Lstainless steel

Light Color : R,G,B,W

LED Type : CREE

Control Mode : Power On/off or DMX512, 0-10V dimming

Input Voltage : 24VDC

IP Rating : IP68

Rated Power : 12w/18w/24w

Dimension : Dia.44x1026mm

Contact Now

Marine LED linear light bar waterproof 5meter deep wide beam angle white RGB light

Key Feature:

1. Work underwater 5meter deep.

2. 316 Stianless steel material.

3. CREE LED Chip.

4. Meanwell power Driver.

5. Wide beam angle 120 degree.

6. CE Rohs UKCA LVD EN62560 IP68 certificate.


Specification

Model No.: MS-WW-RGB-D
LED Q'ty 24pcs/48pcs/96pcs
Light Source Single color or RGB color
Rated Power 12W/18W/24W
Dimension Dia44x1026mm
Material aluminum & 316 stainless steel
N.W. 2.1kg
Input Voltage 24VDC
Control Mode on/off or DMX512
LED Type CREE
Unit LED Power 3W
Lens-angle 10°/15°/25°/ 45°/ 15°x50°, Option Opal/Frosted diffuse
Life Time 50,000hrs
IP Rating

IP68

Application

This waterproof IP68 LED tube light widely used in garden pool, square pool, hotel pool, fountain and other underwater lighting.

2D Drawings

Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light

Control Mode

DMX Control

RGB light is the DMX512 signal input directly,each light address by DMX controller.

The cable is 4wires, DMX+,DMX-,DC24V+.DC24V-,

Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light

Power On/off control

It's a very simple connection between the DC24V switch power supply and LED linear light. It is mainly used for showing the mono-color based on the static & constant working status.

Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light

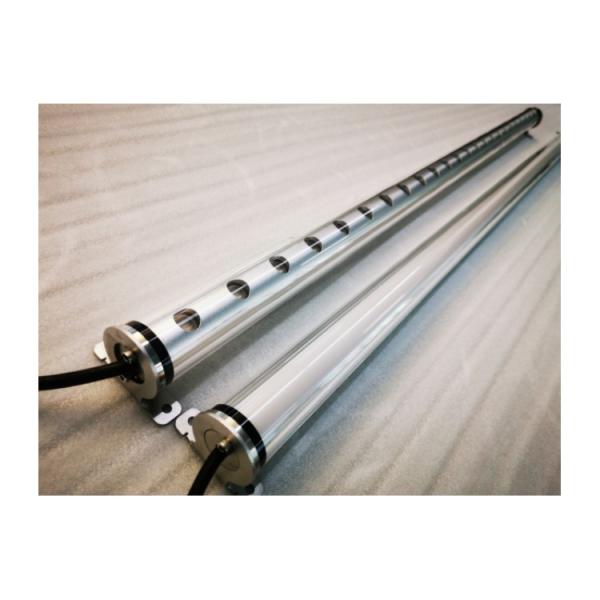

Product photo

Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light

Waterproof Marine LED Linear Light Bar 5meter Deep Wide Beam Angle RGB Light
