12W 24V Exterior Linear LED Wall Washer , DMX512 Rgb Wall Washer Led Lights

Name: 12W 24V Exterior Linear LED Wall Washer DMX512 Rgb Wall Washer Led Lights
Brand: Maysee
Price: 1 USD

Brand Name : Maysee

Model Number : MS-WW-RGB-L5

Certification : CE/ROHS

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : negotiable for better price

Payment Terms : T/T or Western Union or Paypal

Supply Ability : 20000 pcs

Delivery Time : 10-15 days upon receipt of the deposit

Packaging Details : standard carton box for export

Model No. : MS-WW-RGB-L5

Material : Stainless steel 316

LED Type : Nichia/Cree/Epistar

Lens-angle : 120°

Input Voltage : 24VDC

Rated Power : 12W

Dimension : 1000mm(L)x20mm(W)x40mm(H)

Light Source : RGB/R/G/B/W

Control Mode : DMX/on-off

Contact Now

Non-standard customized stainless steel 316 LED linear wall washer with varies angle adjust

Competitive Advantages
1. Never rusting based on be used stainless steel 316 housing and mounting profile.

2.Customized the product according to the client requirements.
2. Exceptional design freedom
3. Easy to experience

Specification

Model No.	MS-WW-RGB-L5
Rated Power	12W
Dimension	1000mm(L)x20mm(W)x40mm(H)
Net Weight	2kg
Q'ty of LEDs	48pcs
Pixels per Bar	8 pixels
DMX Channel per Bar	8x3-CH
Cable outlet	one in,one out
CRI	Ra>80
Input Voltage	24VDC
LED Brand	Nichia/CREE/EPISTAR
Lens	120°
Light Color	SMD (3-in-1) or mono-color
Material	Stainless steel 316
Typical Light Efficiency	>100lm/W(6500K),>55lm/W(RGB)
Operating Humidity	0-99%RH
Operation Temperature	-25℃-45℃
Life Time	50,000 hrs
IP Rating	IP66
Control Mode	DMX512 for RGB version/on-off switch for mono version
Mounting	surface-mounting
Body color	Orignal stainless steel

Features:

1.Cree led chip or Nichia led chip
2. 256 gradations for RGB individually
3. Display to 16,777,216 colors
4. Frame per second: >100 FPS at DMX512 control
5. Dimmable range: 0~255 steps at DMX512 dimming control
6. Built-in constanct-current circuit with PWM signal>400Hz
7. IP66

Application
Building outline, bridge, hotel, shopping mall, commercial area, park, etc.

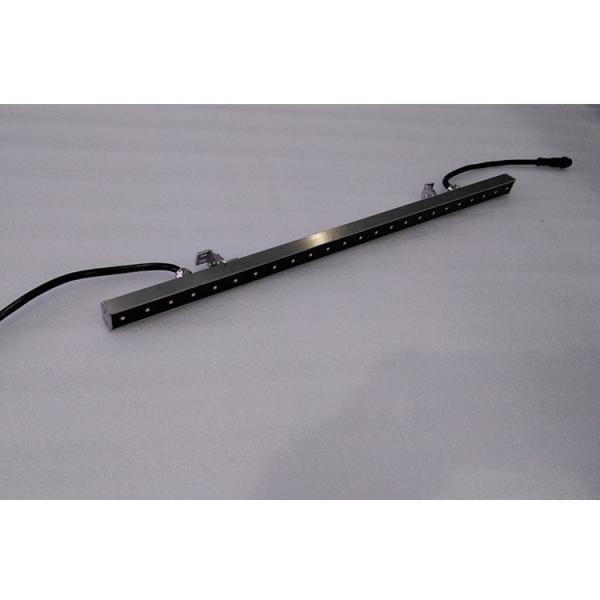

Product pics

12W 24V Exterior Linear LED Wall Washer , DMX512 Rgb Wall Washer Led Lights
